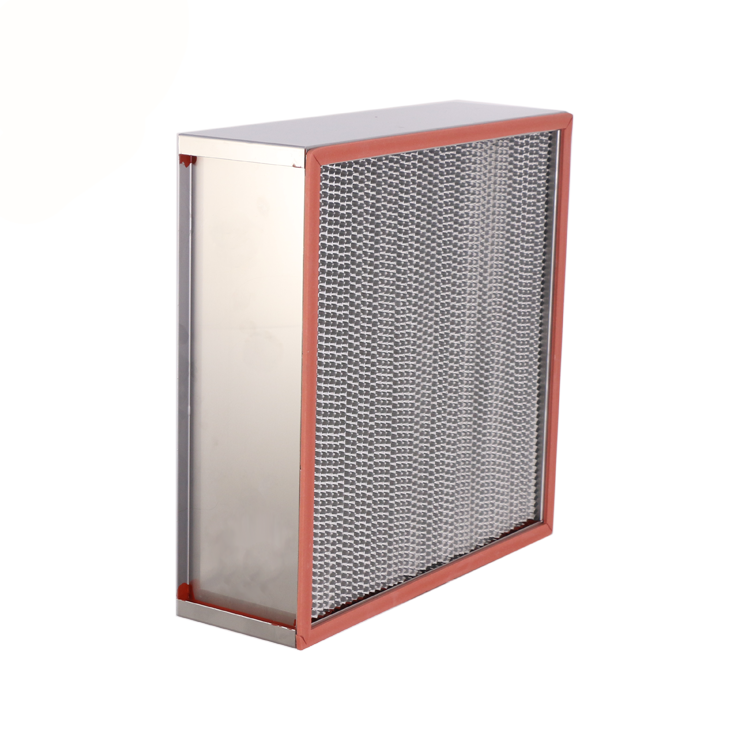

High-temperature filter
High-efficiency filter with temperature resistance up to 250°C
Special high-temperature resistant filter media and sealant, continuous operating temperature 250°C
Technical Specifications
| Size | Customizable (Standard Sizes: 610×610×150/220/292mm) |
| Initial resistance | ≤180 Pa |
| Recommended Final Resistance | ≤400 Pa |
| Filtration efficiency | 99.97%@0.3μm |
Product Features
- •Filtration efficiency: H3-H4 (EN822)
- •Operating Temperature (Long-Term): ≤250°C
- •Short-term heat resistance: ≤300°C
- •Frame material: Stainless steel 304
- •Filter Media Material: High-temperature-resistant Ultrafine Fiberglass
- •Sealant: High-temperature silicone rubber
Use Cases
High-Temperature Sterilization ChamberOvenHigh-temperature cleanroom
