Purification Equipment

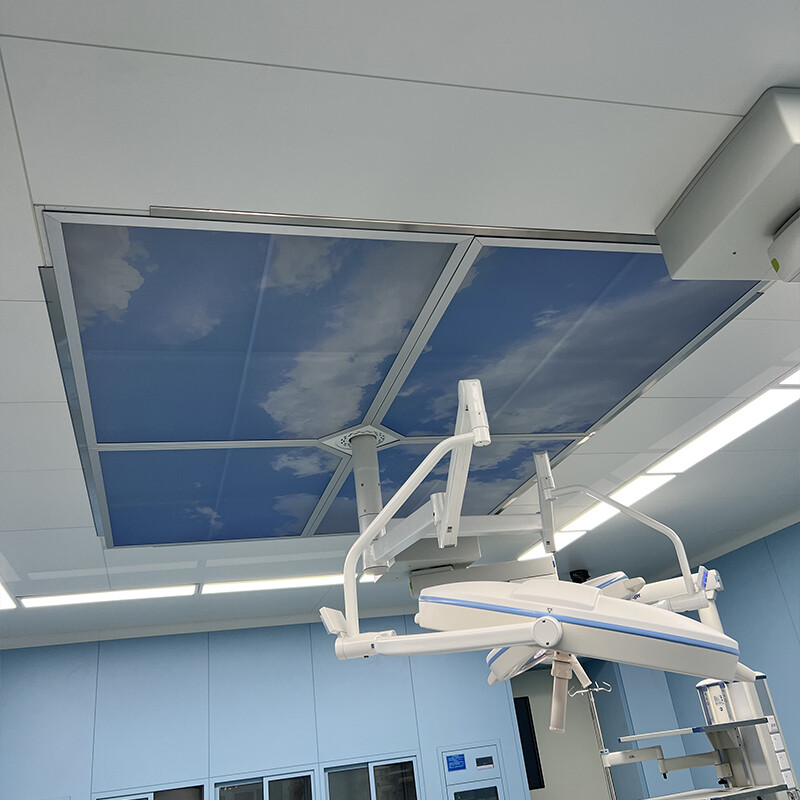

Ceiling diffuser
Large-area air supply with uniform airflow; achieves Class 1/10/100/100,000 cleanroom standards.
Technical Specifications
| Size | Customizable (Standard: 1400*1400mm / 2600*1400mm / 2600*1800mm / 2600*2400mm) |
| Cleanliness | Class 100/1,000/10,000/100,000 |
| Neck Size | Customized to duct dimensions |
| Filtration efficiency | 99.95%@0.3μm, 99.995%@0.3μm |
Product Features
- •Diffuser Material: Stainless Steel 304
- •High-Efficiency Filter: H13/H14
- •Static pressure box: built-in flow equalization membrane
- •Airflow Control: Top Valve
- •Installation method: Recessed ceiling
- •Uniform airflow
Use Cases
Operating RoomICU roomPrecision Assembly Area
